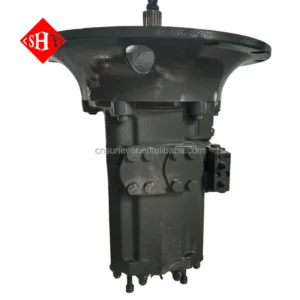

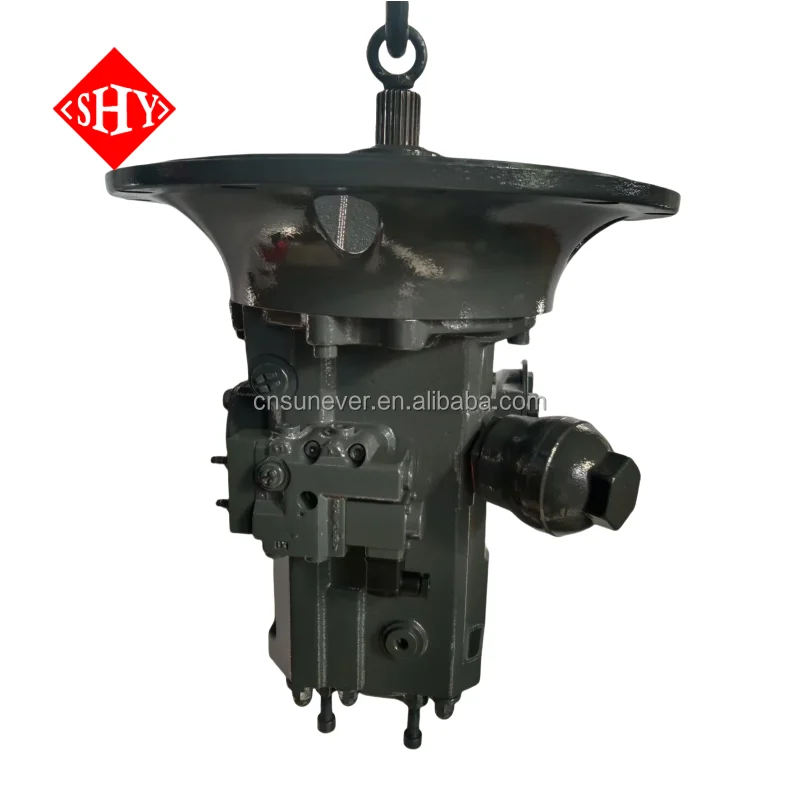

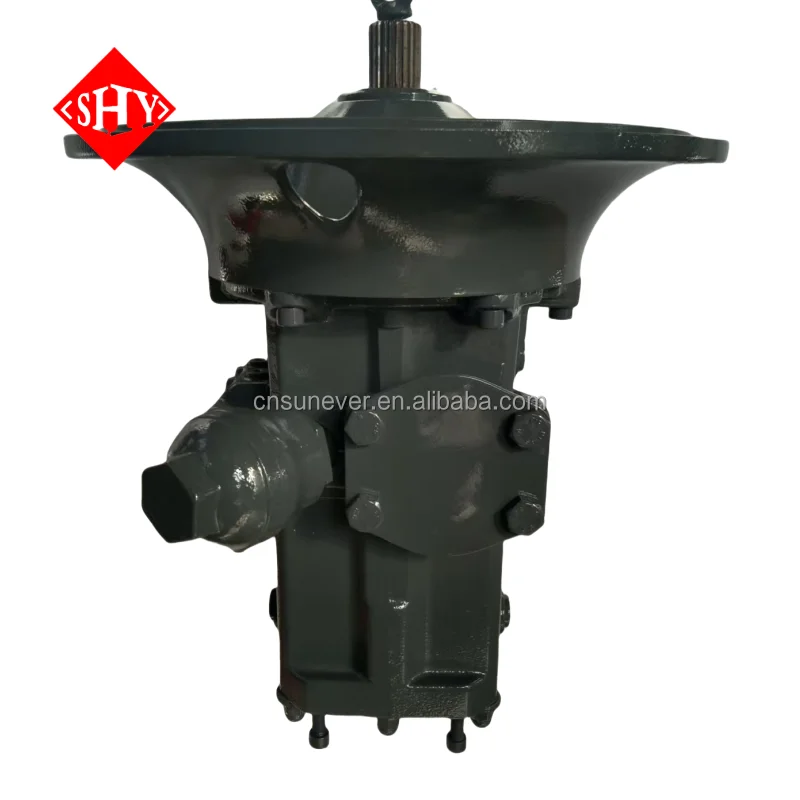

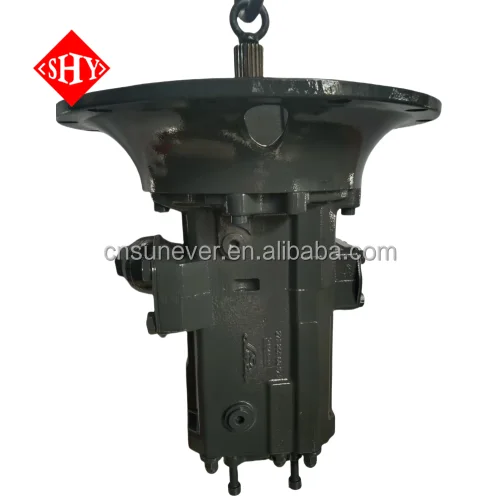

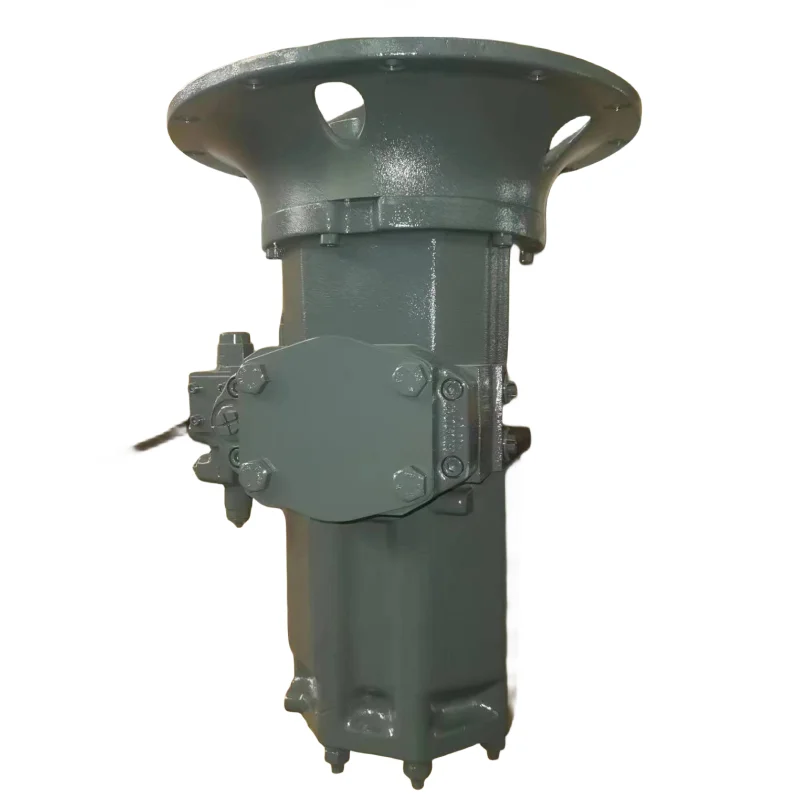

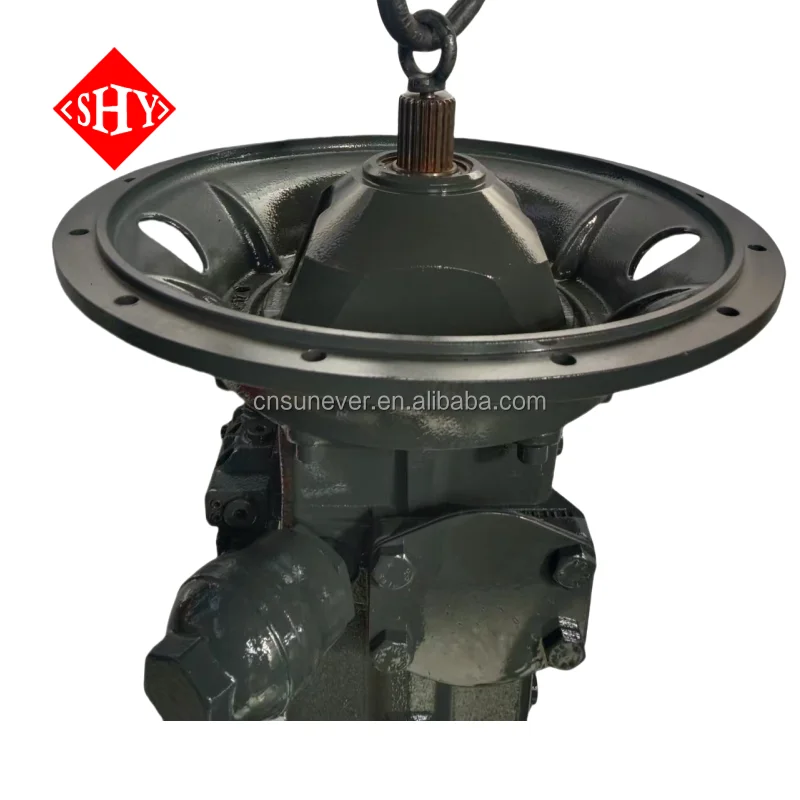

HPV HPR HMV HPR135-02R HPR165-02R Series Hydraulic Pumps HPR105-02 0001 H2X254B01770

The HPV, HPR, and HMV are hydraulic motor series produced by Linde. Here are the relevant model information and parameters:

* HPV Series: It is a variable – displacement piston pump series suitable for closed – circuit operation. The models in this
series include HPV – 55, HPV – 75, HPV – 105, HPV – 135, HPV – 165, HPV – 210, HPV – 280, etc. The maximum displacement ranges
from 54.7 cc/rev to 281.9 cc/rev, the rated pressure is 400 bar or 450 bar, and the maximum speed ranges from 2300 rpm to 3900
rpm.
* HPR Series: It is also a type of hydraulic pump series. The models include HPR – 55, HPR – 75, HPR – 95, HPR – 105, HPR – 135,
HPR – 165, HPR – 210, etc. The maximum displacement ranges from 55 cc/rev to 281.9 cc/rev, the rated pressure is 350 bar or 420
bar, and the maximum speed ranges from 2000 rpm to 2700 rpm.
* HMV Series: It is a variable – displacement axial – piston motor for closed – circuit operation. The models include HMV – 35,
HMV – 50, HMV – 55, HMV – 75, HMV – 105, HMV – 135, HMV – 165, HMV – 210, HMV – 280, etc. This series of motors is equipped
with proportional hydraulic displacement control and pressure override (regulator), and also has additional installations such
as electric maximum displacement override, electric brake pressure shut – off, and purging system.
