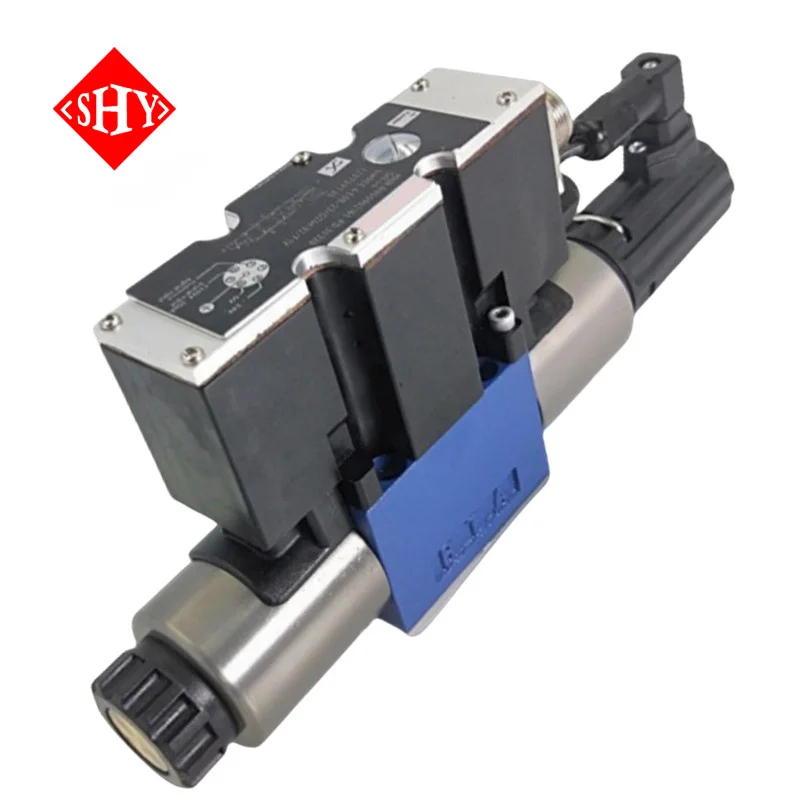

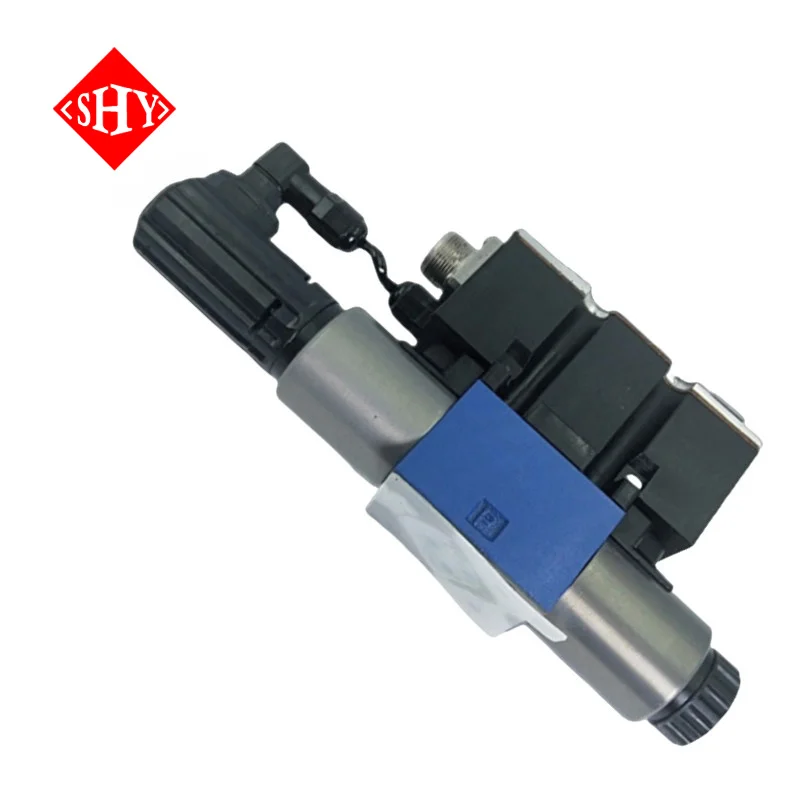

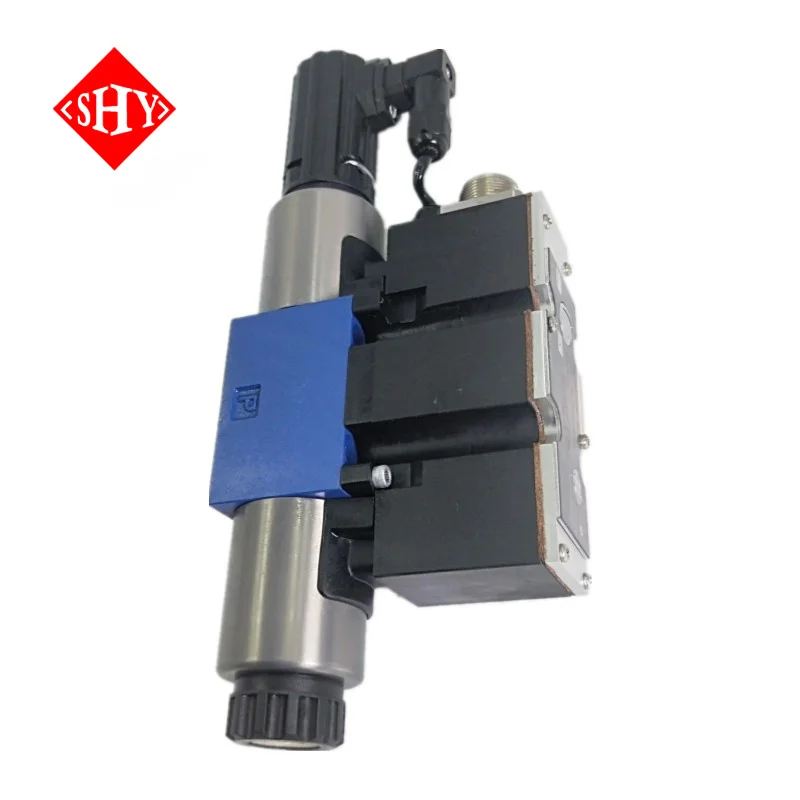

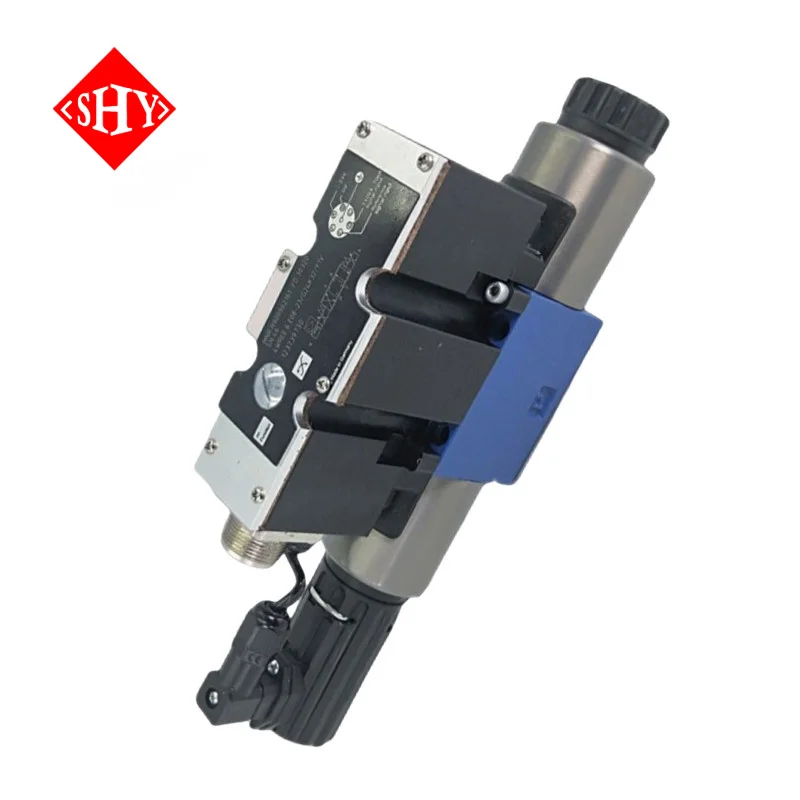

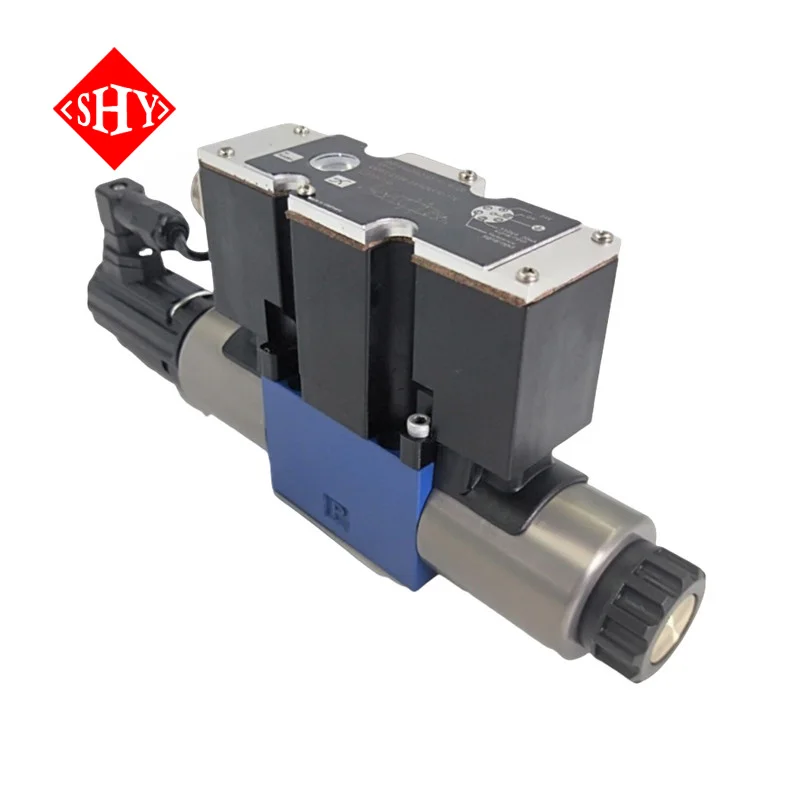

4WREE 4WREE6 4WREE10 Hydraulic Proportional Directional Valve 4WREE10E1-25-2X/G24K31/A1V

The models of 4WREE direct acting proportional directional valves usually follow specific naming rules, and the various parts of their model codes represent different technical specifications and functional features

A typical 4WREE model may be as follows: 4WREE 10 E1-25-2X/G24K31/A1V. We can break it down into several key parts to understand:
4WREE: This is the product series code, indicating a direct acting proportional directional valve.
10: The specifications (diameter) of the valve are commonly available in two sizes: 6 and 10.
E1: This part of the code is usually related to the flow characteristics and functions of the valve core.
25: Indicates the rated flow rate of the valve (unit: liters/minute, L/min).
2X: Represents the component series, referring to the version of installation and connection dimensions.
G24K31: Indicates a power supply voltage of 24V DC and the type of electrical connector.
A1V: represents the type of control signal (such as 0-10V voltage signal) and sealing material, etc.

Partial specific model examples
4WREE6E08-2X/G24K31/A1V
4WREE 10 E1-25-2X/G24K31/A1V
4WREE 10 E1-25-2X/G24K31/A1V-280
4WREE 10 E1-25-2X/G24K31/F1V
4WREE 10 E1-50-2X/G24K31/A1V
4WREE10E75-2X/G24K31/A1V-655

Main technical parameters
The main technical parameters of the 4WREE series valve include:
Maximum working pressure: up to 315 bar.
Maximum flow rate: The maximum flow rate of valve size 6 is about 180 L/min, and the maximum flow rate of valve size 10 is even higher.
